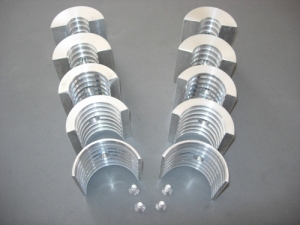

Hydraulic Press Inserts
US Coupler's Hydraulic Press Inserts are designed to work with US Coupler's DK200-HC steel hydraulic coupling press as well as the AHP200 and DK300 aluminum presses. Each set is machined to give proper bite on inner duct ranging from 3/4 to 2 inches.
Each set is interchangeable allowing you to maximize the flexibility of the Hydraulic Press. Changing inserts is a snap by simply undoing the secured hex screw, changing the insert set, and re-tightening the hex screw.
Hydraulic Press Inserts
Click arrow for more info
| Part # | Duct | Duct OD | Duct Type |
|---|---|---|---|
| HPI1.050 | 3/4" | 1.050 | SDR Smooth |
| HPI1.315 | 1" | 1.315 | SDR Smooth |
| HPI1.660 | 1 1/4" | 1.660 | SDR Smooth |
| HPI1.900 | 1 1/2" | 1.900 | SDR Smooth |
| HPI2.375 | 2" | 2.375 | SDR Smooth |
