DK200 Steel Hydraulic Press
Designed as a high production tool for installing aluminum barbed couplings, the US Coupler Hydraulic Coupling Press has evolved an industry-leading standard for its functional simplicity and rugged dependability. Like other US Coupler equipment, it is a product inspired by practical, common sense engineering and field-tested experience.
Machine installed couplings increase the overall integrity of every connection by ensuring consistent, full depth, accurately centered joints inside every coupling. This compact, labor saving tool can easily pay for itself over the course of installing 200 or 300 couplings

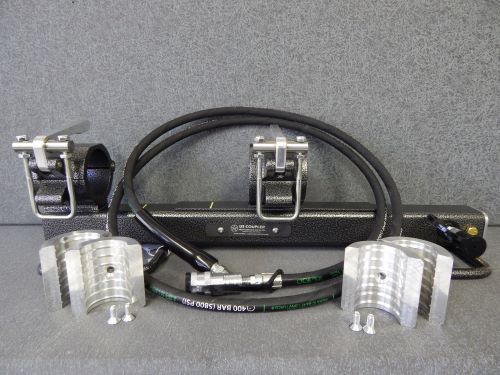

In operation, the ends of the inner duct are simply locked into the pair of hinged clamps and forced into the coupling under power of the small hydraulic pump. Compression springs inside the frame automatically return the movable clamp to its unloaded position after use. The frame of the tool is constructed of heavy gauge 2" tubing which protectively houses the hydraulic rams and other mechanical components. Clamp bodies are machined from 1018 steel billet and have removable inserts to accommodate inner duct of any size from 3/4" to 2". The wide base provides a stable platform during the operation as well as a convenient carrying handle. The press comes with a hose and one set of inserts of your choice.
REQUIRES HAND PUMP SOLD SEPERATELY!
Click arrow for more info
| DK200 Specifications | |
| Weight | 30 lbs. |
| Dimentions | 24" x 8" x 8" |
| Ram Capacity | 5 Tons |
| Included Accesories | Hose, 1 set of inserts |
| Material and Finish | Powder Coated Steel |

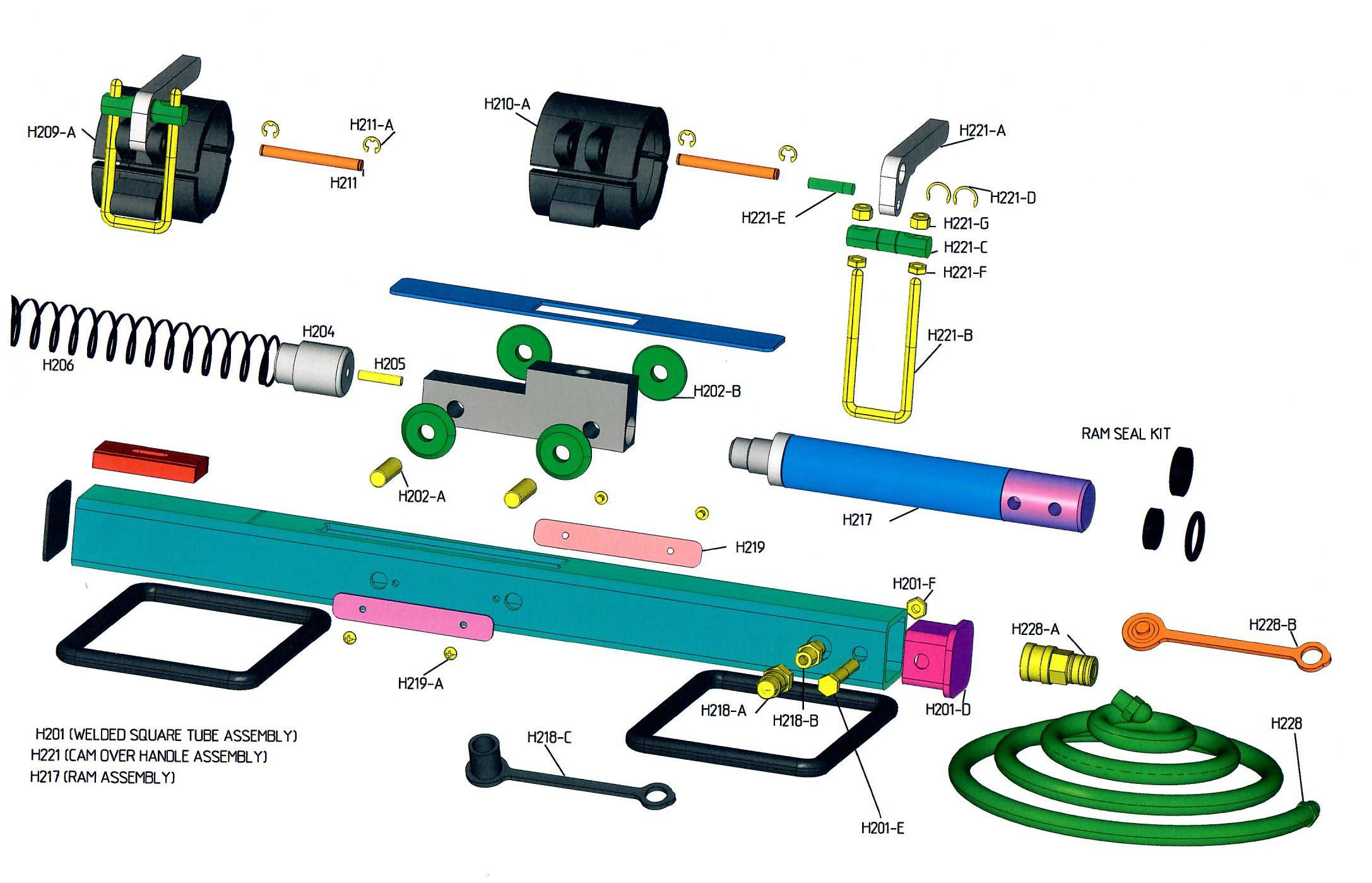

| Parts Sheet | |
